set_loss

Type	action
Module	chaosk8s.chaosmesh.network.actions
Name	set_loss
Return	mapping

Usage

JSON

{
  "name": "set-loss",
  "type": "action",
  "provider": {
    "type": "python",
    "module": "chaosk8s.chaosmesh.network.actions",
    "func": "set_loss",
    "arguments": {
      "name": ""
    }
  }
}

YAML

name: set-loss
provider:
  arguments:
    name: ''
  func: set_loss
  module: chaosk8s.chaosmesh.network.actions
  type: python
type: action

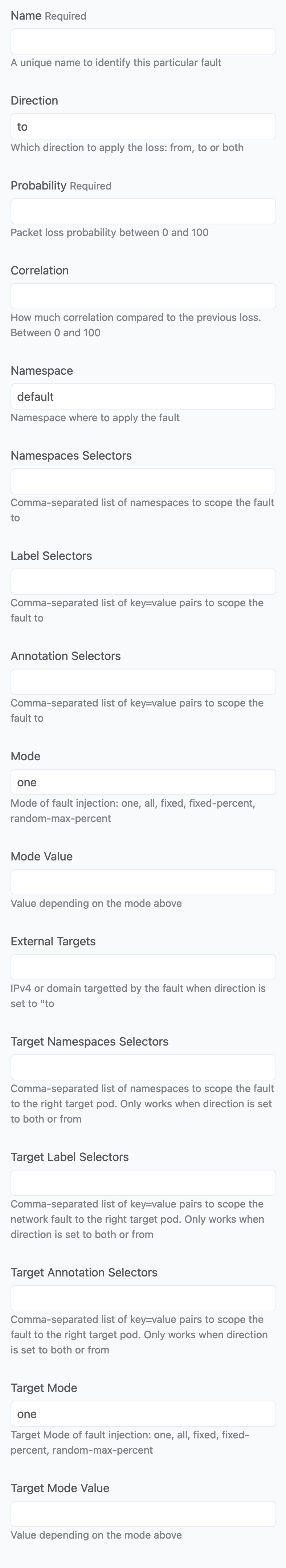

Arguments

Name	Type	Default	Required	Title	Description
name	string		Yes	Name	A unique name to identify this particular fault
direction	string	to	No	Direction	Which direction to apply the loss: from, to or both
loss	string		Yes	Probability	Packet loss probability between 0 and 100
correlation	string		No	Correlation	How much correlation compared to the previous loss. Between 0 and 100
ns	string	default	No	Namespace	Namespace where to apply the fault
namespaces_selectors	string		No	Namespaces Selectors	Comma-separated list of namespaces to scope the fault to
label_selectors	string		No	Label Selectors	Comma-separated list of key=value pairs to scope the fault to
annotations_selectors	string		No	Annotation Selectors	Comma-separated list of key=value pairs to scope the fault to
mode	string	one	No	Mode	Mode of fault injection: one, all, fixed, fixed-percent, random-max-percent
mode_value	string		No	Mode Value	Value depending on the mode above
external_targets	string		No	External Targets	IPv4 or domain targetted by the fault when direction is set to “to”
target_namespaces_selectors	string		No	Target Namespaces Selectors	Comma-separated list of namespaces to scope the fault to the right target pod. Only works when direction is set to both or from
target_label_selectors	string		No	Target Label Selectors	Comma-separated list of key=value pairs to scope the network fault to the right target pod. Only works when direction is set to both or from
target_annotations_selectors	string		No	Target Annotation Selectors	Comma-separated list of key=value pairs to scope the fault to the right target pod. Only works when direction is set to both or from
target_mode	string	one	No	Target Mode	Target Mode of fault injection: one, all, fixed, fixed-percent, random-max-percent
target_mode_value	string		No	Target Mode Value	Value depending on the mode above

This action relies on Chaos Mesh to perform the fault. Make sure to install it before hand.

Signature

def set_loss(name: str,
             ns: str = 'default',
             namespaces_selectors: Optional[str] = None,
             label_selectors: Optional[str] = None,
             annotations_selectors: Optional[str] = None,
             mode: str = 'one',
             mode_value: Optional[str] = None,
             direction: str = 'to',
             loss: Optional[str] = None,
             correlation: Optional[str] = None,
             external_targets: Union[str, List[str], NoneType] = None,
             target_mode: Optional[str] = 'one',
             target_mode_value: Optional[str] = None,
             target_namespaces_selectors: Union[str, List[str],
                                                NoneType] = None,
             target_label_selectors: Union[str, Dict[str, Any],
                                           NoneType] = None,
             target_annotations_selectors: Union[str, Dict[str, Any],
                                                 NoneType] = None,
             secrets: Dict[str, Dict[str, str]] = None) -> Dict[str, Any]:
    pass
