get_slo_budget
Answers the question, “How much of the error budget remained at the time of the measurement?”
Verifies that SLO is matching expectation over a period of time
Below are the details and signature of the activity Python module.
Type | probe |
Module | chaosgcp.monitoring.probes |
Name | valid_slo_ratio_during_window |
Return | list |
Usage
JSON
{
"name": "valid-slo-ratio-during-window",
"type": "probe",
"provider": {
"type": "python",
"module": "chaosgcp.monitoring.probes",
"func": "valid_slo_ratio_during_window",
"arguments": {
"name": ""
}
}
}
YAML
name: valid-slo-ratio-during-window
provider:
arguments:
name: ''
func: valid_slo_ratio_during_window
module: chaosgcp.monitoring.probes
type: python
type: probe

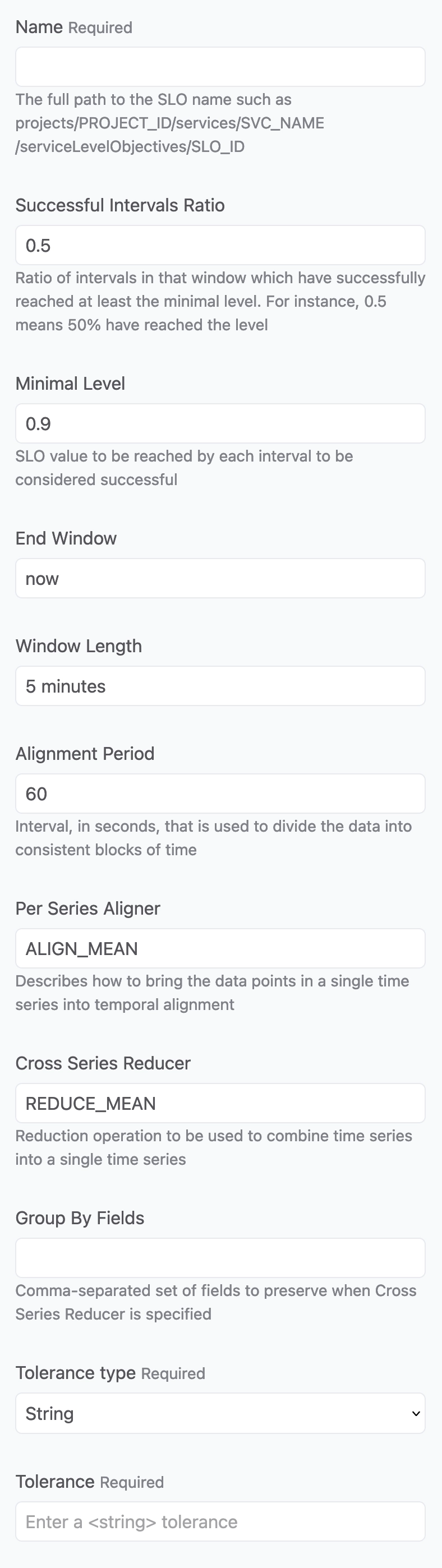

Arguments
Name | Type | Default | Required | Title | Description |
---|---|---|---|---|---|
name | string | Yes | Name | The full path to the SLO name such as projects/PROJECT_ID/services/SVC_NAME/serviceLevelObjectives/SLO_ID | |
expected_ratio | float | 0.5 | No | Successful Intervals Ratio | Ratio of intervals in that window which have successfully reached at least the minimal level. For instance, 0.5 means 50% have reached the level |
min_level | float | 0.9 | No | Minimal Level | SLO value to be reached by each interval to be considered successful |
end_time | string | now | No | End Window | |
window | string | 5 minutes | No | Window Length | |
alignment_period | integer | 60 | No | Alignment Period | Interval, in seconds, that is used to divide the data into consistent blocks of time |
per_series_aligner | string | ALIGN_MEAN | No | Per Series Aligner | Describes how to bring the data points in a single time series into temporal alignment |
cross_series_reducer | string | REDUCE_MEAN | No | Cross Series Reducer | Reduction operation to be used to combine time series into a single time series |
group_by_fields | string | "" | No | Group By Fields | Comma-separated set of fields to preserve when Cross Series Reducer is specified |
See https://cloud.google.com/stackdriver/docs/solutions/slo-monitoring/api/timeseries-selectors
For aggregation, see also this
Signature
def valid_slo_ratio_during_window(
name: str,
expected_ratio: float = 0.9,
min_level: float = 0.9,
end_time: str = 'now',
window: str = '5 minutes',
alignment_period: int = 60,
per_series_aligner: str = 'ALIGN_MEAN',
cross_series_reducer: int = 'REDUCE_COUNT',
group_by_fields: Union[str, List[str], NoneType] = None,
configuration: Dict[str, Dict[str, str]] = None,
secrets: Dict[str, Dict[str, str]] = None) -> bool:
pass
